PDF下载产品参数
| 型号 Model |
步距角 Step angle |
电压 Voltage (V) |
电阻 Resistance (Ω) |
相 Phase |
驱动方式 Drive mode |
最大启动频率 Max. starting frequency (pps) |
最大回转速度 Max. slew speed (pps) |
保持力矩 Holding torque |
丝杆 Lead screw |
|
| 直径 Major Dia |
导程 Lead pitch |
|||||||||
| 065BY25T-01 | 18° | 3.0 | 33 | 1-2 | Bipolar | 2000 | 5000 | 1.8 | Ø1.7 | 0.2 |
| 065BY25T-02 | 18° | 3.0 | 33 | 2-2 | Bipolar | 1500 | 3000 | 3.0 | Ø1.7 | 0.2 |
| 065BY25T-03 | 18° | 3.0 | 55 | 2-2 | Bipolar | 1500 | 3000 | 3.0 | Ø2.0 | 0.3 |
| 065BY25T-04 | 9° | 3.0 | 20 | 1-2 | Bipolar | 2000 | 3500 | 3.0 | Ø1.7 | 0.2 |

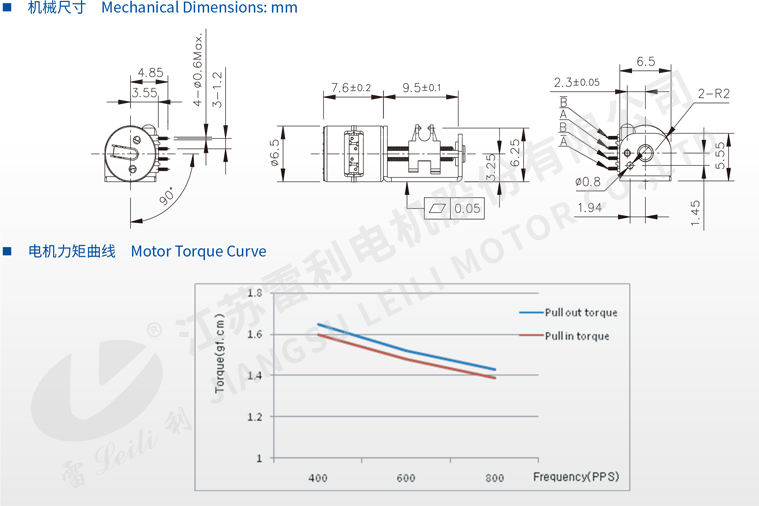

机械尺寸
